China Wholesale High Speed Plastic Injection Molding Machine

Hwamda M8 Series

Precise & Energy Saving Toggle Type Injection Machine

  • Clamping force range: 88T to 3300T
  • TECHMATION or KEBA controller
  • Power unit: energy saving servo system
  • 5 point toggle with T-SLOT platen
  • Shot volume: 129 cm3 to 51908 cm3
  • Shot volume: 129 cm3 to 51908 cm3
  • Tie- bars and toggle pins: 2 Years


Technical Data

Injection Unit

Clamping Unit

Hydraulic Unit

Electric Unit

Quality comes first; service is foremost; business is cooperation” is our business philosophy which is constantly observed and pursued by our company for China Wholesale High Speed Plastic Injection Molding Machine, We just not only offer the good quality to our clients, but more even important is our greatest support along with the competitive cost.
Quality comes first; service is foremost; business is cooperation” is our business philosophy which is constantly observed and pursued by our company for China Thin Wall Plastic Making Machine and Plastic Millk Tea Cup Making Machine, Based on our automatic production line, steady material purchase channel and quick subcontract systems have been built in mainland China to meet customer’s wider and higher requirement in recent years. We’ve been looking forward to cooperating with more clients worldwide for common development and mutual benefit!Your trust and approval are the best reward for our efforts. Keeping honest, innovative and efficient, we sincerely expect that we can be business partners to create our brilliant future!
Basic Info:
M8 Series: 88 Ton Precise & Energy Saving Plastic Injection Molding Machine
Model: HMD88M8/M8-s

Machine Technical Date:

DESCRIPTION

Unit

HMD128 M8/M8-S

International size rating

416/128

INJECTION UNIT

A

B

C

Shot volume

cm3

129

163

201

Shot weight(PS)

g

117

148

183

oz

4.1

5.2

6.5

Injection rate

cm3/s

67

85

105

Screw diameter

mm

32

36

40

Injection pressure

MPa

214

169

137

Screw L:D ratio

L/D

23:1

20:1

18:1

Screw stroke

mm

160

Screw speed (stepless)

r/min

0~215

CLAMPING UNIT

Clamping force

kN

880

Opening stroke

mm

320

Platen size

mm

550 x 550

Space between tie-bars (HxV)

mm

360 x 360

Max. daylight

mm

680

Mold thickness (Min-Max)

mm

150~360

Ejector stroke

mm

100

Ejector force

kN

31

POWER UNIT

Hydraulic system pressure

MPa

16

Pump motor power

kW

7.5/11.6

Heating capacity

kW

7

Number of temp control zones

/

4

GENERAL

Oil tank capacity

L

180

Machine dimensions (LxWxH)

m

4.4 x 1.04 x 1.83

Machine weight

kg

3500



Processing Equipment:

8-1

13

12

9

Certificate:

16

17

15

 Our Service:

18

Quality comes first; service is foremost; business is cooperation” is our business philosophy which is constantly observed and pursued by our company for China Wholesale High Speed Plastic Injection Molding Machine, We just not only offer the good quality to our clients, but more even important is our greatest support along with the competitive cost.
China Wholesale China Thin Wall Plastic Making Machine and Plastic Millk Tea Cup Making Machine, Based on our automatic production line, steady material purchase channel and quick subcontract systems have been built in mainland China to meet customer’s wider and higher requirement in recent years. We’ve been looking forward to cooperating with more clients worldwide for common development and mutual benefit!Your trust and approval are the best reward for our efforts. Keeping honest, innovative and efficient, we sincerely expect that we can be business partners to create our brilliant future!


  • Previous:
  • Next:

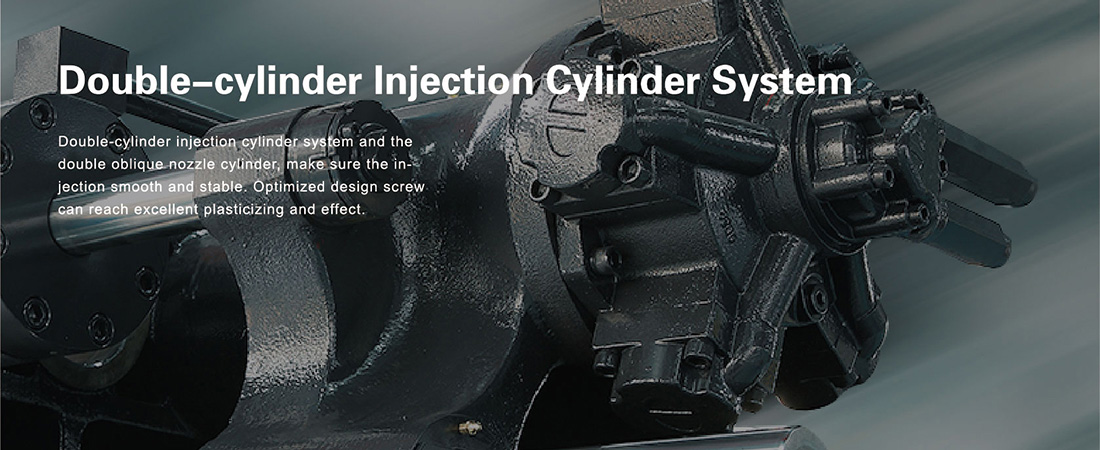

  • M8 Series injection unit
    • High rigidity one piece type injection base
    • Dual injection cylinder & screw rotation speed indicate
    • Dual carriage cylinder ensure stable injection movement
    • Two layers barrel cover ensure low temp for safe operation

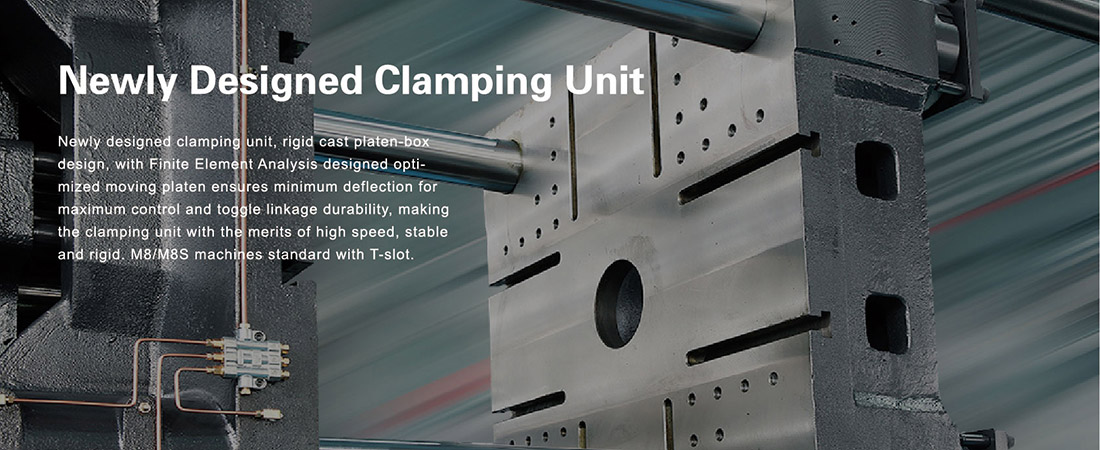

    M8 Series Clamping Unit
    • High quality parts & FEA designed Clamping unit
    • The strengthening ribs on platen designed according to machine real working situation, and molds can be forced more balance.
    • Standard with T-slot, it is more convenient for installation and removal of mold.

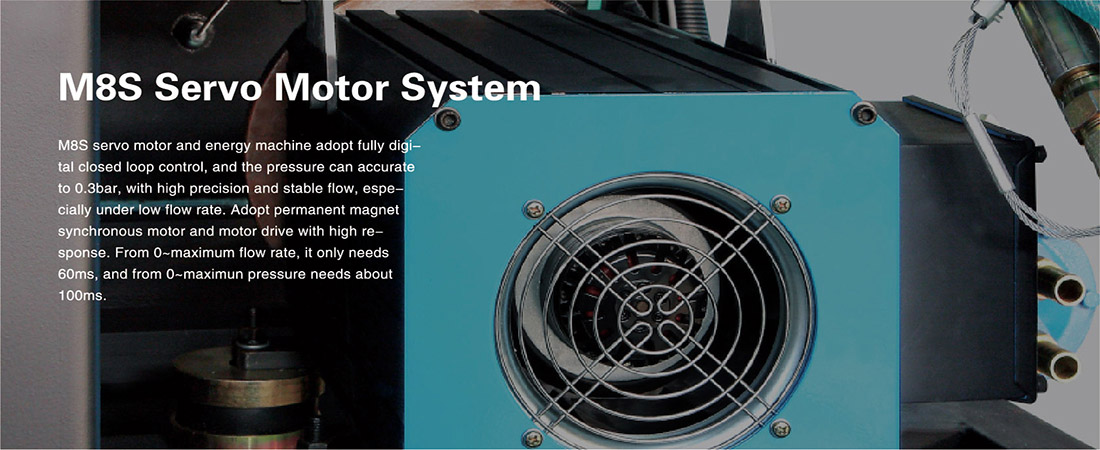

    M8 Series Hydraulic Unit
    • Equipped with precise and energy saving servo motor system
    • High response servo motor, more than 90% working efficiency
    • Modular designed hydraulic parts ensure machine’s reliability and fast response speed.
    • Self-sealed magnetic suction filter
    M8 Series Electric Unit
    • World well-known brands electric parts
    • High quality large color screen controller, multi-language available
    • High safety cabinet standard equipped rubber seal for water-proof
    • Machine program according to CE safety standard.
